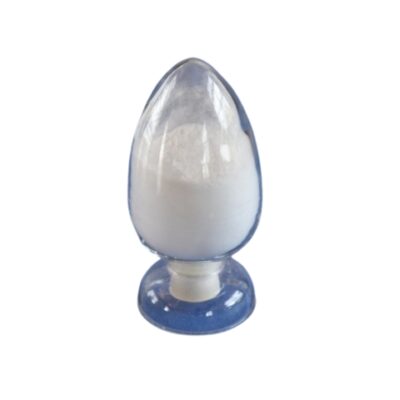

Hexagonal Boron Nitride

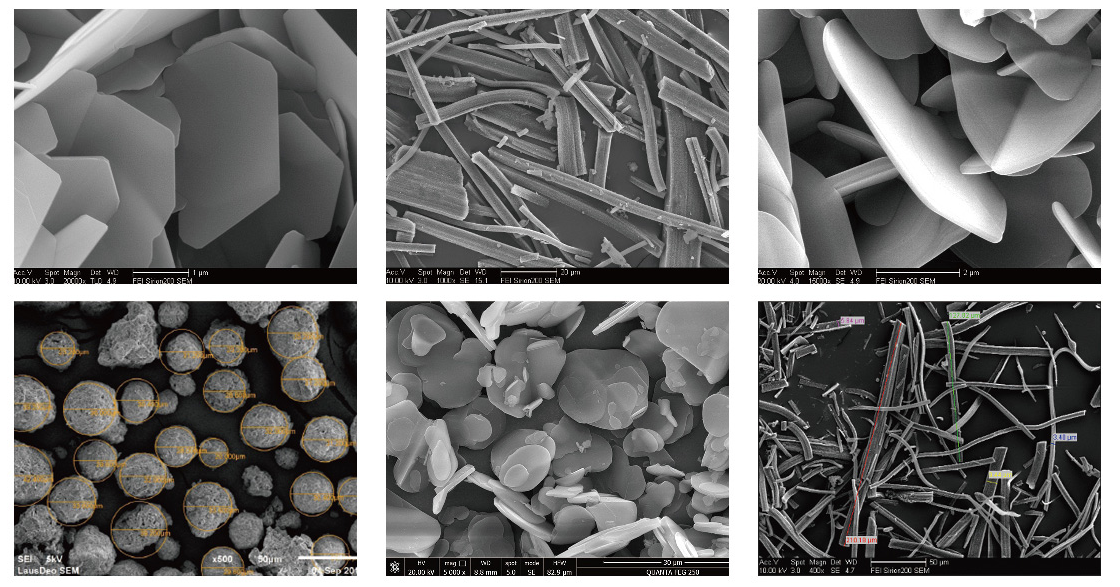

Hexagonal boron nitride is a kind of advanced ceramic material. Its microstructure is flaky and its molecular structure is hexagonal crystal. Hexagonal boron nitride has very special and excellent physical and chemical properties. It has very good thermal conductivity, electrical insulation, chemical corrosion resistance and oxidation resistance. It can withstand up to 1000℃ in air, and up to 2000℃ in inert gas and vacuum. After reaction sintering at high temperature of 2000℃, the crystalline boron nitride has stable chemical and physical properties and excellent thermal conductivity (single crystal thermal conductivity is about 250-300W/mk). At present, the company produces single crystal flake crystalline powder of 500 nanometer-20 microns and nanoscale spherical boron nitride.

Application

Hexagonal boron nitride is favored by the electronic industry because of its rare conditions of high thermal conductivity and electrical insulation performance. Domestic and foreign electronic manufacturers have conducted large-scale application research in thermal conductive plastics, semiconductor packaging and filling, LED heat dissipation packaging, etc. It has excellent performance in some traditional metal smelting, casting, special lubricating oil, glass industry and other boron nitride industries.

Fill out the form below and we will respond within 30 minutes!

Contact Form Demo
Category: Tags: , , , ,
Share your love

CAS NO.: 10043-11-5

Molecular weight: 514.16

Chemical formula: BN

EC Number: 233-136-6

Density: 2.1 g/cm3 (h-BN)

Hexagonal Boron Nitride Specification:

Grade Purity Particle Szie (D50) B2O3% O2% C% Tap Density

g/cm³

 BET

(m²/g)

 Si,Al,Ca Cu,K,Fe  Na,Ni,Cr
PN >98 2-100um <1.2 <1.5 <0.15 0.2-0.6 2-35 <60ppm <20ppm
PW >99 2-100um <0.5 <0.8 <0.1 0.2-0.6 2-35 <60ppm <20ppm
TW >99.3 2-100um <0.2 <0.5 <0.08 0.2-0.6 2-35 <60ppm <20ppm
SW >99.5 2-20um <0.1 <0.3 <0.04 0.1-0.3 6-25 <60ppm <20ppm
HPBN >99 30-150um <0.5 <1 <0.04 >0.7   <60ppm <20ppm

Hexagonal Boron Nitride Packaging:

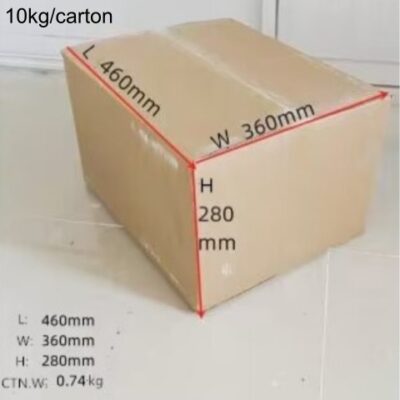

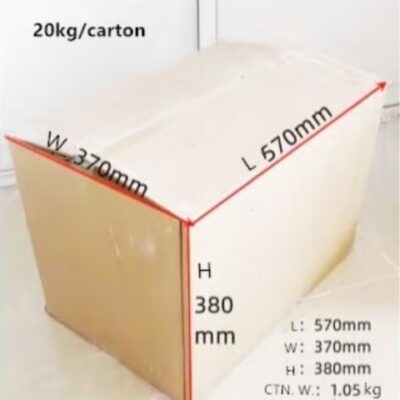

10kg/carton box, 20kg/carton box

Hexagonal Boron Nitride Storage:

Keep under dry and cool place, Keeping away from goods that can affect the quality of the goods, against damp. Careful load and unload, be care not pollute or torn the package, avoid rain and insolation during transportation.
