Molecular Sieve 13X

Molecular Sieve 13X is available in several forms, including spherical beads, cylindrical extrudates, and base powder. Its primary applications include general gas drying, purification of feed air in air separation plants (removal of H₂O and CO₂), and desulfurization of liquid hydrocarbons and natural gas (removal of H₂S and mercaptans).

Product Name: Molecular Sieve 13X

CAS NO.:63231-69-6

HS Code:3824999999

카테고리: 태그: , , ,

Molecular Sieve 13X

Our high-capacity 13X Molecular Sieve serves as a premium adsorbent for industrial gas dehydration and multi-impurity purification, delivering outstanding adsorption efficiency and long service durability.
Featuring a standard 10Å pore opening, this 13X zeolite effectively captures moisture, carbon dioxide and other trace contaminants from air and mixed gas streams. It is perfectly suited for air separation units, PSA oxygen production and various industrial gas drying processes.
Boasting evenly distributed pore structure and stable mechanical strength, our 13X molecular sieve maintains consistent adsorption performance under harsh industrial working conditions, helping you cut operational costs and sustain stable long-term production.

Product Features & Benefits

High Adsorption Capacity: Exceptional water and CO₂ adsorption performance, ideal for deep purification applications.

Mechanical Stability: Low attrition rate and high crushing strength reduce dust formation and extend service life in dynamic systems.

Consistent Quality: Strict quality control for particle size, density, and strength ensures uniform performance in industrial processes.

Versatile Forms: Available in powder, extruded strips, and spherical beads to suit different process requirements (e.g., fixed beds, fluidized beds, and custom formulations).



Typical Applications

Air Separation: Removes water vapor and CO₂ from feed air to prevent freezing and poisoning of cryogenic separation units.

Natural Gas Purification: Removes H₂O, CO₂, and sulfur compounds to meet pipeline and LNG specifications.

Hydrocarbon Drying & Purification: Removes water and impurities from natural gas, LPG, and petrochemical streams.

Solvent Drying: Effective desiccant for organic solvents and industrial gases.

CO₂ Removal: Used in biogas upgrading, flue gas treatment, and enclosed environment air purification.

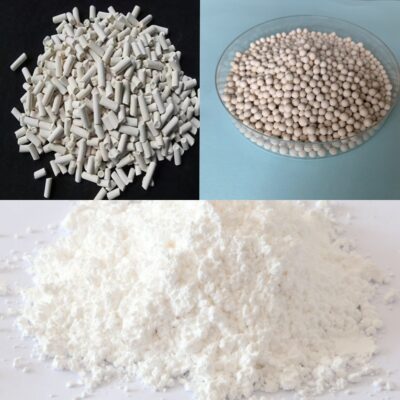

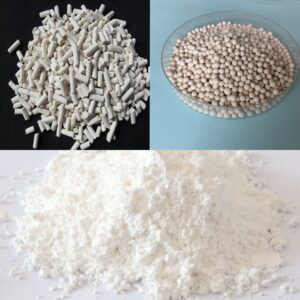

                 13X Molecular Sieve Powder                                                    Spherical 13X Molecular Sieve                                         Extruded 13X Molecular Sieve

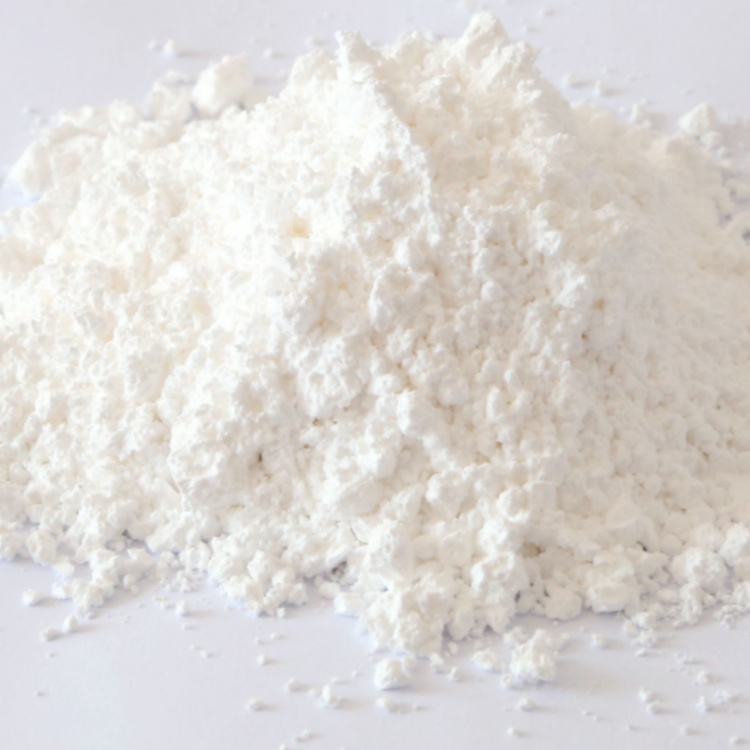

13X Molecular Sieve Powder

안건 First-class Product Qualified Product
모습 White powder, no mechanical impurities White powder, no mechanical impurities
Static Water Adsorption (35℃±1℃, saturated brine, relative humidity 75 %, 24 h)/% ≥ 32.5 32.0
Static CO₂ Adsorption (adsorption temperature 0℃±1℃)ᵃ/% ≥ 27.5 26.5
Static CO₂ Adsorption (adsorption temperature 25℃±1℃)/% ≥ 23.5 22.5
Moisture Content of Packaged Product (550℃±10℃, 1 h)ᵇ/% ≤ 22.5 23.0
pH Value ≤ 11.0
Residue on Sieve (0.045 mm)/% ≤ 0.5
Tap Density (g/mL) ≥ 0.60
ᵃ Static CO₂ Adsorption (adsorption temperature 0℃)/% is a type inspection item and arbitration inspection method.

ᵇ The moisture content of packaged product is subject to factory inspection.

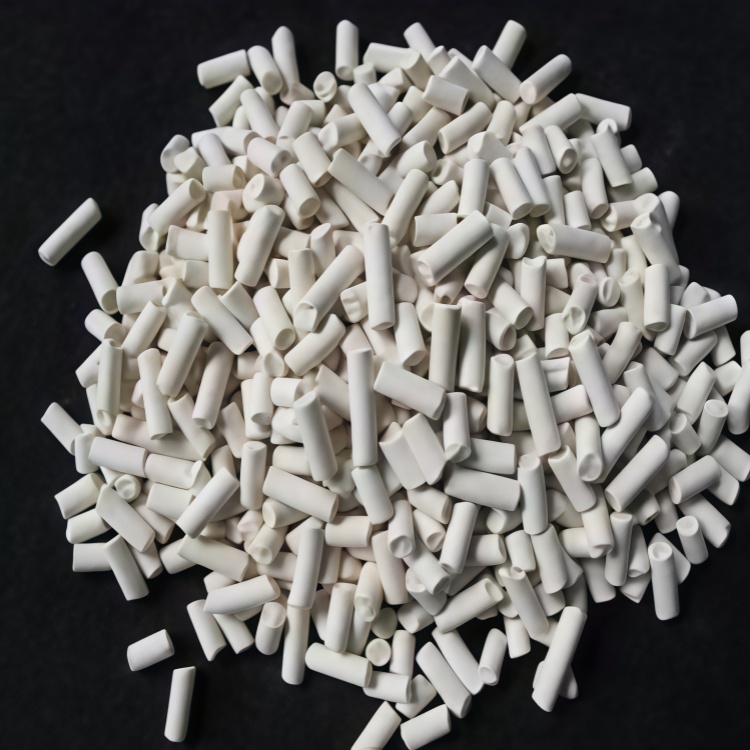

Extruded 13X Molecular Sieve

안건  (d 1.5 mm～1.7 mm)  (d 3.0 mm～3.3 mm)
First-class Product Qualified Product First-class Product Qualified Product
모습 Strip granules, no mechanical impurities
Static Water Adsorption (35℃±1℃, saturated brine, relative humidity 75 %, 24 h)/% ≥ 26.0 24.0 26.0 24.0
Attrition Rate/% ≤ 0.10 0.50 0.20 0.60
Static CO₂ Adsorption (adsorption temperature 0℃±1℃)/% ≥ 19.0 17.0 19.0 17.0
Static CO₂ Adsorption (adsorption temperature 25℃±1℃)/% ≥ 17.5 15.5 17.5 15.5
Crushing Strength Crushing Strength (N/Strip) ≥ 30.0 20.0 45.0 35.0
Relative Standard Deviation of Crushing Strength ≤ 0.3 0.4 0.3 0.4
Loose Bulk Density (g/mL) ≥ 0.61 0.56 0.61 0.56
입자 크기 Percentage of Rated Length in Total Quantityⁿ/% ≥ 95.0 90.0 95.0 90.0
Strip Diameter Variation Coefficient ≤ 0.3
Moisture Content of Packaged Product (550℃±10℃, 1 h)/% ≤ 1.5
a Static CO₂ Adsorption (adsorption temperature 0℃)/% is a type inspection item and arbitration inspection method.

b Particle Size

1) The particle size of molecular sieve with specification d 1.5 mm～1.7 mm is the mass fraction of sample with strip length 1 mm～6 mm in the total amount;

2) The particle size of molecular sieve with specification d 3.0 mm～3.3 mm is the mass fraction of sample with strip length 3 mm～9 mm in the total amount.

c The moisture content of packaged product is subject to factory inspection.

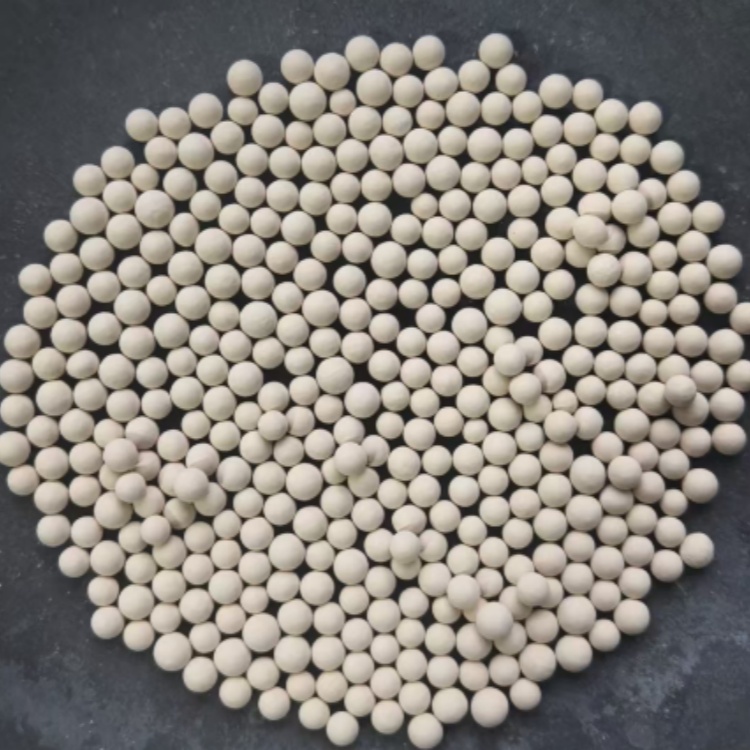

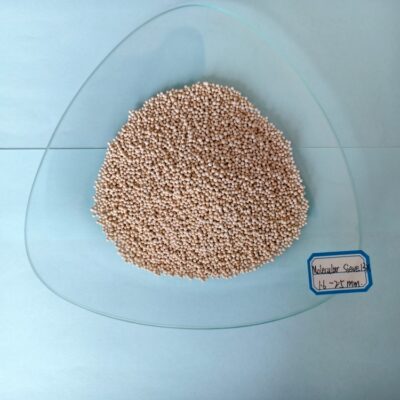

Spherical 13X Molecular Sieve

안건 (d 1.6 mm～2.5 mm) (d 3.0 mm～5.0 mm)
First-class Product Qualified Product First-class Product Qualified Product
모습 Spherical granules, no mechanical impurities
Static Water Adsorption (35℃±1℃, saturated brine, relative humidity 75 %, 24 h)/% ≥ 26.0 24.0 26.0 24.0
Attrition Rate/% ≤ 0.10 0.50 0.10 0.50
Static CO₂ Adsorption (adsorption temperature 0℃±1℃)ᵃ/% ≥ 20.0 18.0 20.0 18.0
Static CO₂ Adsorption (adsorption temperature 25℃±1℃)/% ≥ 18.5 16.5 18.5 16.5
Particle Size/% ≥ 98.0 90.0 98.0 90.0
Loose Bulk Density (g/mL) ≥ 0.64 0.59 0.64 0.59
Crushing  Strength Crushing Strength (N/Particle) ≥ 30 20 85 65
Relative Standard Deviation of Crushing Strength ≤ 0.3
Moisture Content of Packaged Product (550℃±10℃, 1 h)ᵇ/% ≤ 1.5
ᵃ Static CO₂Adsorption (adsorption temperature 0℃)/% is a type inspection item and arbitration inspection method.

ᵇ The moisture content of packaged product is subject to factory inspection.



안전 보호:

Keep under dry and cool place, Keeping away from goods that can affect the quality of the goods, against damp. Careful load and unload, be care not pollute or torn the package, avoid rain and insolation during transportation.
